"HAUL-ALL" TILT TRUCKS*
1.7 CUBIC YARD
Volume Capacity: 50
cubic feet, 366 gallons
Outside Body Dimensions: 74" x
40" x 45.5" (Overall height shown below)
|
|
Model Number
|
Pound Capacity
|
Overall Height
|
Wheel Type
|
Caster Type
|
# of Casters
|
Ship Weight
|
|
1.7 UT*
 |
1000 lbs
|
50.5"
|
10" x 2" rubber on plastic, roller bearing hubs
|
4" medium duty urethane on polymer, ball bearing hubs
|
2
|
165 lbs.
|
|
1.7 CU-S
 |
1700 lbs
|
53.5"
|
12" x 2" rubber molded on cast steel, roller bearing hubs
|
6" heavy duty rubber molded on cast steel, roller bearing
hubs
|
2
|
207 lbs.
|
|
1.7 CU-HD
 |
2200 lbs
|
53.5"
|
12" x 2" rubber molded on cast steel, roller bearing hubs
|
6" heavy duty rubber molded on cast steel, roller bearing
hubs
|
2
|
263 lbs.
|
|
| -Tilt
Truck Options- |
| |
|
"HAUL-ALL" TILT TRUCKS*
2.2 CUBIC YARD
Volume Capacity: 59
cubic feet, 441 gallons
Outside Body Dimensions: 74" x
51" x 45.5" (Overall height shown below)
|
|
Model Number
|
Pound Capacity
|
Overall Height
|
Wheel Type
|
Caster Type
|
# of Casters
|
Ship Weight
|
|
2.2 UT *
 |
1200 lbs
|
52.25"
|
12" x 2" rubber on polymer, ball bearing hubs
|
5" medium duty urethane on polymer, ball bearing hubs
|
2
|
193 lbs.
|
|
2.2 CU-S
 |
2000 lbs
|
53.5"
|
12" x 2" rubber molded on cast steel, roller bearing hubs
|
6" heavy duty rubber molded on cast steel, roller bearing
hubs
|
2
|
240 lbs.
|
|
2.2 CU-HD
 |
2500 lbs
|
53.5"
|
12" x 2" rubber molded on cast steel, roller bearing hubs
|
6" heavy duty rubber molded on cast steel, roller bearing
hubs
|
2
|
296 lbs.
|
|
| -Tilt
Truck Options- |
| |
|
"HAUL-ALL" TILT TRUCKS*
3.0 CUBIC YARD
Volume Capacity: 78 cubic feet,
585 gallons
Outside Body Dimensions: 81" x
56" x 48" (Overall height shown below)
|
|
Model Number
|
Pound Capacity
|
Overall Height
|
Wheel Type
|
Caster Type
|
# of Casters
|
Ship Weight
|
|
3.0 CU-S
 |
2500 lbs
|
56"
|
12" x 2" rubber molded on cast steel, roller bearing hubs
|
6" heavy duty rubber molded on cast steel, roller bearing
hubs
|
2
|
298 lbs.
|
|
3.0 CU-HD
 |
2800 lbs
|
56"
|
12" x 2" rubber molded on cast steel, roller bearing hubs
|
6" heavy duty rubber molded on cast steel, roller bearing
hubs
|
2
|
350 lbs.
|
|
| -Tilt
Truck Options- |
| |
| *NOTE: "UT" grade trucks
are for use in lighter-duty applications with smooth floors. |
| |
|
|
|
|

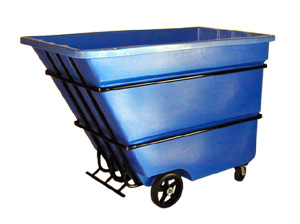

1.7
CU-HD
