Self-Dumping Hoppers

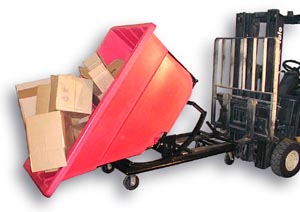

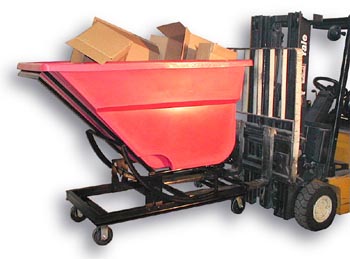

(SD-1.1-C show in upright & dumping positions in picture below graph)

Our self-dumping hoppers, with sturdy, all-welded steel framework, allow safe and easy handling of heavy loads. Designed to dump up to 40 degrees below horizontal to ensure total emptying of contents. Seamless, molded polyethylene body is supported by steel tube frame. Optional 6" casters allow for easy maneuverability. Also available with an all-stainless steel framework for extremely caustic or food grade applications. Hinged lids are available for all five sizes to help meet OSHA sanitary requirements. Bodies available in your choice of color. Standard framework painted black.  Please note that hoppers should be secured to forklift or floor before dumping.  (Please note - the SD-3.0 with or without casters can only be ordered on a non-returnable basis due to the size.  It is an enormous unit, and care must be taken before ordering to ensure it is the appropriate size for your application.)

(Please click here for optional hinged lids.)

MODEL
NUMBER
CU. YD.
CAPACITY
GALLONS POUNDS
CAPACITY
DIMENSIONS WEIGHT WT. WITH
CASTERS
SD-5/8 5/8 Cu. Yd. 123 750 59"x26"x42"* 175 lbs. 220 lbs.
SD-1.1 1.1 Cu. Yd 220 1,000 71"x31"x46"* 210 lbs. 258 lbs.
SD-1.7 1.7 Cu. Yd 366 1,200 80"x40"x55"* 300 lbs. 354 lbs.
SD-2.2 2.2 Cu. Yd 441 1,500 80"x51"x55"* 331 lbs. 386 lbs.
SD-3.0 3.0 Cu Yd 585 1,700 90"x56"x63"* 400 lbs. 460 lbs.

*Add 7.5" to height with casters - add "-C" to model number to signify casters.





SD-1.1-C

 SD-1.7-C
