Rotationally
Molded Pallets
|
Rotationally molded pallets are used in
applications calling for odd sizes or with very punishing
conditions. All but part number WP-48 are double-walled
construction to provide maximum durability. Molded internal
supports help transfer loads between top and bottom pallet
surfaces.
|
|

|
|
SUP-51
QP-48
|
 PG-60 |
|
Model Number
|
Overall LxWxH
|
Fork Tunnel
|
Weight Capacity
|
Ship Weight
|
|
CH-42*
|
42"x42"x7.5"
|
30"x4.5"
|
1500 lbs.
|
45 lbs.
|
|

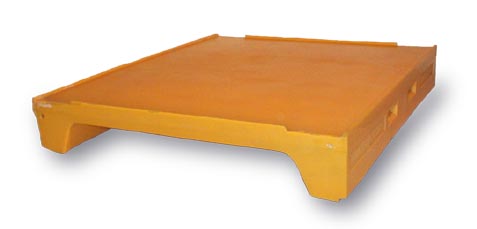

CH-48*
|
48"x42"x7.5"
|
30"x4.5"
|
1500 lbs.
|
50 lbs.
|
| SUP-51 |
51"x51"x8.5" |
2
@ 13"x4.5" |
1500
lbs. |
70
lbs. |
| QP-48 |
48"x60"x8" |
2
@ 11"x4.5" |
1500
lbs. |
60
lbs. |
|

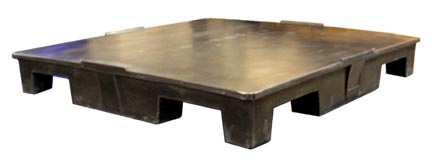

PG-60** |
60"x60"x8" |
12" x 4.5" |
2000 lbs. |
115 lbs. |
|
*Available with flat top surface, or with molded rim.
**Not for use with standard pallet-jacks - 24" wide middle "foot".
|

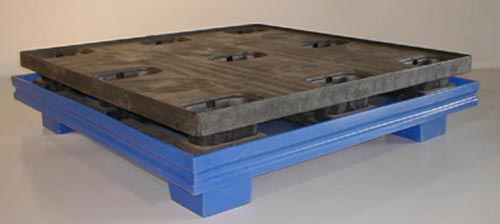

Singe-walled, four way entry. 12 gallon overspill
capacity provides a low-cost secondary containment. Addition of
optional injection-molded barrel pallet (DRL-4845 on Injected
pallet page) allows
easy placement and removal of drums.
|
|
Model Number
|
Overall LxWxH
|
Depth
|
Weight Capacity
|
Ship Weight
|
|
WP-48
|
48"x48"x8"
|
4"
|
1000 lbs.
|
50 lbs.
|
|
| |
