Nesting
Boxes
|
|
|
| |
We
offer two styles. Our "Traditional"
style is a standard nesting unit with a rectangular or square
shape and smooth, featureless walls and bottom. Our "Unique"
styles have various features molded into the walls and/or bottoms
of the containers for fit more unique applications.
|

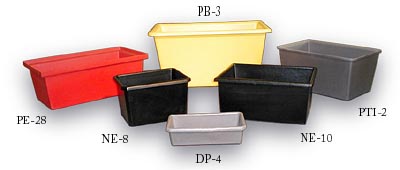

TRADITIONAL |
|
Model Number
|
Outside top dim.
|
Inside top dim.
|
Inside Bottom
|
Depth
|
Type of Rim
|
Nesting Percentage
|
Ship Weight
|
| DP-4 |
15"x8.25" |
13.5"x7" |
12.5"x6" |
4" |
rolled |
90% |
1.5
lbs |
| NC-6 |
31"x18.25" |
29"x16" |
28"x15" |
6" |
rolled |
90% |
8
lbs. |
|
PTI-1
|
17"x11"
|
16.5"x10.75
|
14.25"x9"
|
10"
|
return
|
75%
|
3 lbs.
|
|
PTI-2
|
23"x15"
|
22.5"x14.5"
|
19.5"x11.5"
|
12"
|
return
|
90%
|
4 lbs.
|
|
PE-28
|
28.5"x16.5"
|
28"x16"
|
24"x12.5"
|
10.5"
|
return
|
85%
|
8 lbs.
|
| NE-8 |
15.5"x11.75" |
13.75"x10.25" |
12.5"x9" |
9" |
rolled |
80% |
3 lbs. |
| NE-9 |
15.25"x15.5" |
13.5"x13.75" |
12.25"x12.5" |
9" |
rolled |
80% |
4
lbs. |
| NE-10 |
20.75"x15.5" |
18.5"x13.75" |
17.75"x12.5" |
9" |
rolled |
80% |
6
lbs. |
|
NE-11
|
21.5"x11.5"
|
20"x10.25"
|
18.5"x9"
|
10.25"
|
rolled
|
75%
|
4.5 lbs |
|
NE-13
|
21.5"x13.5"
|
20"x12.25"
|
18.5"x11"
|
10.25"
|
rolled
|
75%
|
5 lbs.
|
|
CE-15
|
20.75"x14.75"
|
18.5"x12.5"
|
17.25"x11.25"
|
12"
|
rolled
|
90%
|
5 lbs.
|
|
NE-17
|
21.25"x17.5"
|
20"x16.25"
|
18.5"x15"
|
10.25"
|
rolled
|
75%
|
7 lbs.
|
|
PB-2
|
25"x18"
|
21.5"x14.5"
|
18"x11"
|
13"
|
rolled
|
85%
|
9 lbs.
|
|
PB-3*
|
27"x20"
|
23.5"x16.5"
|
20"x13"
|
15"
|
rolled
|
85%
|
11 lbs.
|
|
NB-21
|
23.5"x18"
|
20"x15"
|
18"x13"
|
21"
|
rolled
|
90%
|
11 lbs.
|
|
PB-4*
|
33"x21"
|
29"x18"
|
24.75"x15"
|
15.75"
|
rolled
|
85%
|
12 lbs.
|
|
PB-6*
|
32"x23"
|
28"x19"
|
24"x16"
|
20"
|
rolled
|
85%
|
13 lbs.
|
|
PB-7*
|
37"x24.5"
|
32"x21"
|
28.5"x17.25"
|
19.75"
|
rolled
|
85%
|
25 lbs.
|
|
PB-8*
|
36"x24"
|
32"x21"
|
28.5"x17"
|
23"
|
rolled
|
85%
|
25 lbs.
|
|
|
|

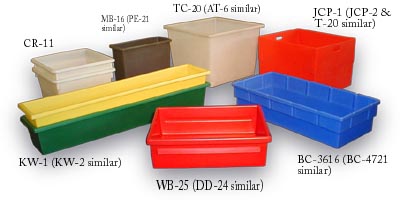

UNIQUE
|
|
Model Number
|
Outside top dim.
|
Inside top dim.
|
Inside Bottom
|
Depth
|
Nest %
|
Ship Weight
|
Special Features
|
|
BC-3616*
|
38.5"x18"
|
36.5"x16"
|
36"x15.5"
|
9"
|
50%
|
9 lbs.
|
Molded ribs
|
|
BC-4721*
|
48.5"x23"
|
46"x20"
|
45"x19.5"
|
13.5"
|
50%
|
20 lbs.
|
Huge & Molded ribs
|
|
KW-1*
|
54.5"x11.5"
|
52"x9.5"
|
51.25"x8"
|
8"
|
90%
|
10 lbs.
|
Extra long box
|
|
KW-2*
|
64.5"x12"
|
62"x9"
|
61"x8"
|
8"
|
90%
|
11.5 lbs
|
Extra long box
|
| KW-3* |
42"x15" |
40"x13" |
39"x11.5" |
8" |
90% |
13
lbs. |
Includes
lid |
|
JCP-1
|
26"x22"
|
25.5"x20.5
|
24.5"x20.5"
|
17"
|
50%
|
11 lbs.
|
No rim, handholes
|
|
JCP-2
|
26"x22"
|
24"x20"
|
21.5"x17.5"
|
17"
|
60%
|
11 lbs.
|
Return rim
|
|
PE-21*
|
22"x9"
|
19.5"x7"
|
17.5"x4.5"
|
10"
|
90%
|
5 lbs.
|
Substantial taper
|
|
DD-24
|
24.5"x18"
|
23"x16.5"
|
21.5"x16"
|
5.5"
|
85%
|
7 lbs.
|
Ribs on bottom
|
|
WB-25
|
27.5:x20.5"
|
25.75"x19"
|
25"x18.25"
|
7.5"
|
50%
|
8 lbs.
|
Molded nesting stops
|
|
CR-11
|
22"x 22"
|
19"x 19"
|
17"x16.5"
|
11"
|
80%
|
7 lbs.
|
Square, nesting stops
|
|
T-20
|
21.5"x21.5"
|
21"x21"
|
20"x18.5"
|
20"
|
90%
|
10 lbs.
|
Side ribs, no rim
|
|
TC-20
|
27.5"x27.5"
|
25.5"x25.5
|
23"x23"
|
19.5"
|
90%
|
17 lbs.
|
Square, rolled rim
|
|
AT-6
|
24"x24"
|
23"x23"
|
21"x21"
|
6"
|
95%
|
6 lbs.
|
Square, return rim
|
|
|
*Optional Lids available - call or E-mail
for details. |
