Injection
Molded Boxes
|
We
offer a number of injection molded boxes and bins for sale to
our customers. Styles as follows, and apologies for all
the scrolling required!
|
|
|

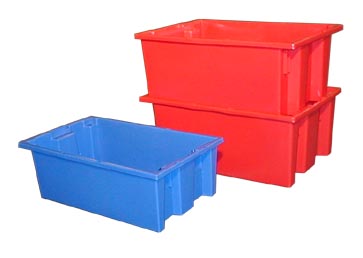

INJECTION
MOLDED STACK & NEST: |
Boxes stack in one direction, nest
when turned 180 degrees. Optional lids available for most sizes.
Units stack with or without lids in place.
![](images/stack__nest.jpg)
|
Model Number
|
Outside top Dimension
|
Inside bottom Dimension
|
Ship Weight
|
A-180
|
18"x11"x6"
|
16"x10"x6"
|
2.25 lbs.
|
A-185 |
18"x11"x9" |
16"x10"x9" |
2.5 lbs. |
A-190
|
19.5"x15.5"x10"
|
17"x14.5"x10"
|
4 lbs.
|
A-195 |
19.5"x15.5"x13" |
17"x14.5"x13" |
5 lbs.
|
A-200
|
19.5"x13.5"x8"
|
17"x12.25"x8"
|
4 lbs.
|
A-225 |
23.5"x19.5"x10"
|
21"x18"x10"
|
7 lbs.
|
A-230
|
23.5"x19.5"x13"
|
21"x18"x13"
|
8.5 lbs.
|
A-240
|
23.5"x15.5"x12"
|
21"x14.5"x12"
|
6 lbs.
|
A-300
|
29.5"x19.5"x15"
|
26.5"x18.5"x15"
|
11.5 lbs.
|
WRH-8* |
24"x20"x8" |
21.5"x17.5"x7.8" |
8
lbs. |
|
*NOTE: WRH-8 is a vented stack & nest tote. |
![](images/top.gif) |

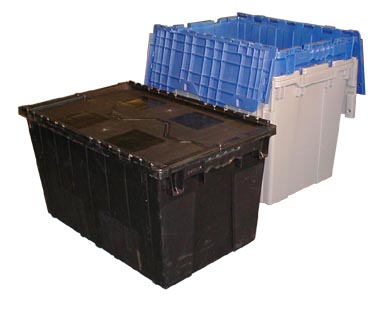

INJECTION
MOLDED ATTACHED LID CONTAINERS |
Popular
for transporting and storing lighter loads. Boxes nest when
lids are open, stack on top of the interlocking lids when closed.
Other sizes also available.
|
Model Number
|
Outside top Dimension
|
Inside bottom Dimension
|
Cubic Foot Capacity
|
Ship Weight
|
M-2012-7 |
19.6"x11.8"x7" |
17.5"x9.9"x6.3" |
.53 |
3.26 lb |
M-2012-8 |
19.9"x11.4"x7.5" |
17.6"x10.6"x6.4" |
.65 |
3.48 lb |
M-2115-9 |
21.9"x15.3"x9.7" |
20.1"x14.3"x8.2" |
1.3 |
5.42 lb |
M-2115-12 |
21.9"x15.2"x12.8" |
19.7"x14"x11" |
1.7 |
6.23 lb |
M-2115-17 |
21.9"x15.2"x17.2" |
20.1"x14.3"x15.8" |
2.3 |
7.87 lb |
M-2213-12 |
22.4"x13"x13" |
20"x11.3"x11.8" |
1.4 |
6 lb |
M-2420-12 |
23.8"x19.2"x12.5" |
22.3"x18.1"x11" |
2.4 |
7.66 lb |
M-2515-14 |
24.5"x14.9"x13.8" |
22.5"x13.9"x12.3" |
2.2 |
7 lb |
M-2717-12 |
27.2"x16.6"x12.5" |
25.1"x15.6"x11" |
2.5 |
8.11 lb |
M-2818-13 |
27.6"x18.3"x13.5" |
25.1"x15.6"x11" |
2.6 |
11 lb |
|
![](images/top.gif) |
INJECTION
MOLDED STRAIGHT WALLED STACKING BOXES |
These modular shipping,
storage & work in process containers will maximize space usage.
Different sizes stack together and may be palletized. Solid sidewalls,
handles molded on two sides. Attached lids also available.
![](images/straight-sided.jpg)
|
Model Number
|
Outside Dimensions
|
Inside Dimensions
|
Ship Weight
|
RSO-1207-5
|
12"x7.4"x5"
|
9.4"x5.5"x4.3"
|
1.4 lbs.
|
RSO-1215-5
|
12"x15"x5"
|
9.2"x12.9"x4.3"
|
2 lbs.
|
RSO-1215-7
|
12"x15"x7.5"
|
9.2"x12.9"x6.8"
|
3 lbs.
|
RSO-2415-5
|
24"x15"x5"
|
21.2"x12.9"x4.3"
|
4 lbs.
|
RSO-2415-7
|
24"x15"x7.5"
|
21.2"x12.9"x6.8"
|
4.5 lbs.
|
RSO-2415-9
|
24"x15"x9.5"
|
21.5"x13"x8.8"
|
5.2 lbs.
|
RSO-2422-7 |
24"x22"x7.5"
|
20.6"x20.2"x6.8"
|
7 lbs.
|
RSO-2422-11 |
24"x22"x11.5"
|
20.6"x20.2"x10.8"
|
8.2 lbs.
|
RSO-2422-14
|
24"x22.5"x14.5"
|
20.6"x20.2"x13.8"
|
9.3 lbs.
|
|
![](images/top.gif) |

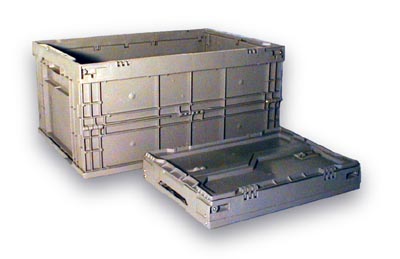

INJECTION
MOLDED COLLAPSIBLE CONTAINERS |
Designed to fold down
when empty to save space - return ratio of 4:1. Optional attached
lids available for most sizes.
![](images/collapsible.jpg)
|
Model Number
|
Outside Dimensions
|
Inside Dimensions
|
Ship Weight
|
RC-1
|
15.5"x11"x7"
|
13.9"x9.7"x6.25"
|
3 lbs.
|
RC-1.5
|
15.5"x11"x13.1"
|
13.6"x9.7"x12.1"
|
4.9 lbs.
|
RC-2
|
21.9"x15.5"x7"
|
20.3"x14.25"x6.25"
|
4.3 lbs.
|
RC-3
|
21.9"x15.5"x10.5"
|
20.3"x14.25"x9.75"
|
5.4 lbs.
|
RC-5
|
21.9"x15.5"x14"
|
20.3"x14.25"x13.2"
|
7 lbs.
|
RC-6
|
32"x14.75"x10.5"
|
30.5"x13.25"x9.75"
|
8.7 lbs.
|
RC-2422 |
23.8"x22.3"x11"
|
22"x20.8"x10.25"
|
9 lbs.
|
RC-2415 |
24"x15"x14.7" |
22.5"x13.6"x14" |
6.8 lbs. |
|
![](images/top.gif) |
INJECTION

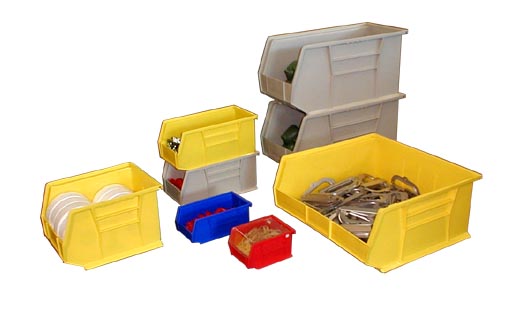

MOLDED PARTS BINS |
Bins stack on top one-another and have a sloped
front for easy access to contents. Bins may be mounted on rack
or rails using molded-in hangers.
![](images/parts_bins.jpg)
|
Model Number
|
Outside Dimension
|
Inside Dimension
|
Divider Numbers
|
Q-210
|
5.25"x4"x3"
|
4.75"x3.25"x2.75"
|
DUS-210 |
Q-220
|
7.25"x4"x3"
|
6.75"x3.25"x2.75"
|
DUS-220
|
Q-230
|
10.75"x5.5"x5"
|
10.25"x4.25"x4.75"
|
DUS-230
|
Q-235
|
10.75"x11"x5"
|
10.25"x10"x4.75"
|
DUS-235
|
Q-239
|
10.75"x8.25"x7"
|
10"x6.5"x6.75"
|
DUS-239
|
Q-240
|
14.75"x8.25"x7"
|
14"x6.5"x6.75"
|
DUS-240
|
Q-250
|
14.75"x16.5"x7"
|
14"x14.75"x6.75"
|
DUS-250
|
Q-265
|
18"x8.25"x9"
|
17"x6.75"x8.25"
|
DUS-265
|
Q-270
|
18"x16.5"x11"
|
17"x14.75"x10.25"
|
DUS-270
|
Q-952 |
24"x11"x7" |
22.5"x10"x6.75" |
DUS-270
|
Q-955 |
24"x18"x12" |
22.5"x16.5"x11" |
DUS-270
|
Q-970 |
29.75"x8"x7" |
28.25"x6.75"x6.5" |
N/A |
Q-975 |
29.75"x18"x12" |
28.25"x16.5"x11" |
N/A |
Q-976 |
29.75"x16.5"x15" |
28.25"x16.5"x14" |
N/A |
|
*DON’T FORGET TO CHECK OUT
SPECIALS IN THE "YARD SALE"
SECTION! GREAT DEALS ON MANY ITEMS!
|
